专利号: ZL202130291872.9

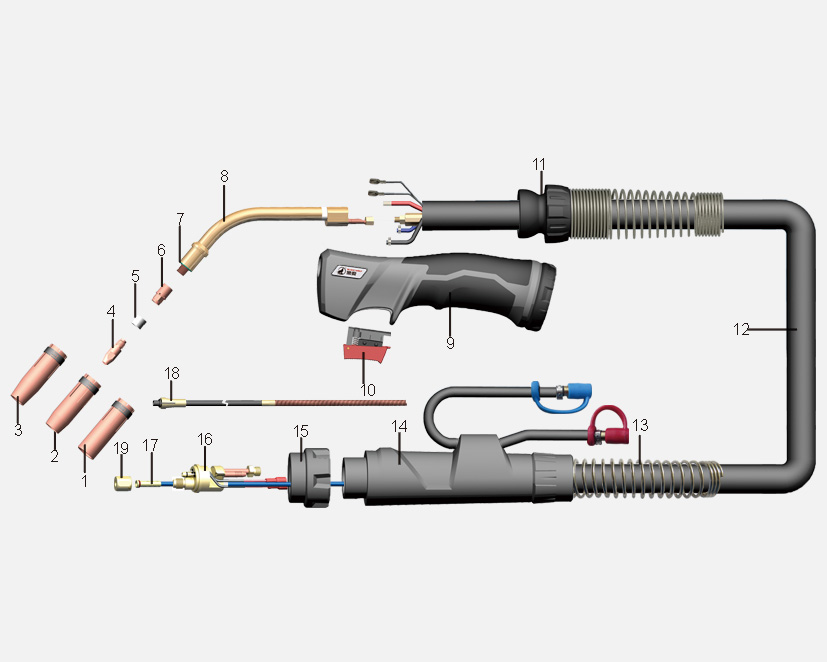

枪与配件适用于宾采尔
| No. | Order | 描述 | OEM p/n |
| MBZ2004.03 | BW 501D AL/P 整枪(BWM-VI 黑灰手把) 3 米 | ||
| MBZ2005.05 | BW 501D AL/P 整枪(BWM-VI 黑灰手把) 5 米 | ||
| 1 | MBZ0830.01 | 柱形喷管 ?19mm | 145.0051 |
| 2 | MBZ0830.02 | 锥形喷管 ?16mm | 145.0085 |
| 3 | MBZ0830.03 | 尖形喷管 ?14mm | 145.0132 |
| 4 | MBZ0532.02 | M8x30x1.0 导电嘴, 紫铜 | 140.0008 |
| MBZ0532.03 | M8x30x1.2 导电嘴, 紫铜 | 141.0015 | |
| MBZ0732.02 | M8x30x1.6 导电嘴, 紫铜 | 141.0022 | |
| MBZ0533.02 | M8x30x1.0 导电嘴, 铬锆铜 | 140.0316 | |
| MBZ0533.03 | M8x30x1.2 导电嘴, 铬锆铜 | 140.0445 | |
| MBZ0733.01 | M8x30x1.6 导电嘴, 铬锆铜 | 140.0059 | |
| MBZ0834.03 | M8x30x1.0 导电嘴, 紫铜铝焊 | 141.0008 | |
| MBZ0834.04 | M8x30x1.2 导电嘴, 紫铜铝焊 | 141.0015 | |
| MBZ0834.05 | M8x30x1.6 导电嘴, 紫铜铝焊 | 141.0022 | |
| 5 | MBZ2039.01 | 分配器 | 034.0926.0 |
| 6 | MBZ2035.01 | 导电嘴座 | 142.0271.0 |
| 7 | MBZ0849 | 绝缘垫片 | 30.0019 |
| 8 | MBZ2043 | 弯管 | 034.0928.0 |
| 9 | MBZ0122.03 | BWM-VI 手把黑灰 | |
| 10 | MBZ0195.02 | 开关 | |
| 11 | MBZ0896.02 | 球关节前电缆支撑弹簧 | |
| 12 | MBZ0860.01 | 电缆组,3 米 | |
| MBZ0860.02 | 电缆组,5 米 | ||
| 13 | MBZ0897 | 后电缆支撑弹簧 | |
| 14 | MBZ0871.02 | 接头把套 | |
| 15 | MBZ0170.02 | 连接螺母套 | |
| 16 | MBZ0872 | 中央接头 WZ-2 | 501.0015 |
| 17 | MBZ0680.02.35 | 蓝色送丝软管, 适用焊丝 ?1.0-1.2,3.5 米 | |
| MBZ0680.02.55 | 蓝色送丝软管, 适用焊丝 ?1.0-1.2,5.5 米 | ||
| 18 | MBZ0880.04.35 | 铝焊丝专用送丝软管, 适用焊丝 ?1.6，3.5 米 | |
| MBZ0880.04.55 | 铝焊丝专用送丝软管, 适用焊丝 ?1.6，5.5 米 | ||
| 19 | MBZ0173 | 螺母 M10x1 | 501.0082 |
订购说明：订购时请说明手把款式，具体款式参考欧式焊枪手把形式。
BLACK WOLF is in no way affiliated with BINZEL. The parts advertised for sale are not genuine BINZEL parts, but are parts made for and by BLACK WOLF.
References to BINZEL machines, torches,and numbers are for your convenience only. We reserve the right to substitute genuine BINZEL parts in place of BLACK WOLF parts.
